Data sources#

A data source registers a store your data already lives in — an S3, GCS, Azure Blob, OCI or MinIO bucket, an NFS export, or paths on your machines — so that Astraeus can index it where it is. One of your machines lists the files, groups them into partitions, reads Parquet footers and keeps the index on its own disk. You then browse files, partitions, schemas and column statistics through the API, and see what changed between two passes.

Use a data source to:

Know what is in a bucket before you train on it: how many files and bytes, which partitions, which Parquet schemas, how many rows.
See what changed since the last pass (files added, removed, changed).
Profile columns of Parquet data (nulls, min/max/mean, distinct counts, frequent values, histograms) without moving the data.

In the API, a data source is a connector (/v1/data-sources, also /v1/connectors).

Runs do not mount data sources

A data source is indexed by a machine. It is not mounted into runs. To read the same bucket from a run, give the run a credential and use your usual client (for example aws s3, gsutil, fsspec). See Read the same store from a run. To mount files, use a drive.

How it works#

You create the data source. Its state is Unassigned.
The cluster assigns it to one machine that is Up and may serve it: a machine of your organisation, in the workspace's pools, matching the data source's node_selector. Among those, the machine that serves the fewest data sources wins. The state becomes Assigned (Served by machine gpu-03).
The agent's data part on that machine (astraeus-agent-data, installed by default) reaches the store with the machine's own cloud identity, or with a credential that is fetched onto that machine. It checks the store every 5 minutes and reports Ready (Reachable from node gpu-03) or Error with the store's answer.
Every 5 minutes, or when you ask, the agent indexes the store: it lists the files (up to 200,000 per pass), fingerprints each one (key, size, modification time, ETag), groups them by directory (Hive key=value directories become partition values), and reads the footer of each new or changed Parquet file.
The index stays on the machine (under /var/lib/astraeus/catalog). The Astralyx control plane keeps only a summary: totals, a hash over the partitions, and the counts of files added, removed and changed.

If the machine goes away, the data source is assigned to another eligible machine.

Supported kinds#

`kind`	What	Indexed
`S3`	An Amazon S3 bucket	Yes
`MinIO`	MinIO or any S3-compatible endpoint	Yes
`GCS`	A Google Cloud Storage bucket	Yes
`Azure`	An Azure Blob Storage container	Yes
`Oracle`	An OCI Object Storage bucket	Yes
`NFS`	An NFS export already mounted on the machines	Yes, from `host_path` only
`Local`	Directories on the machines	Yes
`Kafka`, `SQS`, `EventBridge`	Streams	No. They can be created and stored, but the catalog does not index streams: the data source reports `Error`

Before you begin#

You need the admin or editor role in the workspace.
At least one machine in the workspace's pools must run the agent's data part, astraeus-agent-data (installed by default with --agents drives,credentials,data).
Decide how the machine authenticates to the store. Prefer the machine's own identity (an EC2 instance role, a GCE service account, an Azure managed identity, an OCI instance principal): nothing is stored anywhere. Otherwise, create a credential that references the key in your secret manager.
Local paths and an NFS host_path must be inside the workspace's granted Host paths, or creation is refused with 403 HOST_ACCESS_FORBIDDEN.
For the API examples, set TOKEN and API as described in Drives.

No CLI commands for data sources

The astraeus CLI has no data source commands. Use the console or the API.

Create a data source#

ConsoleAPI

Open Resources in the workspace, choose the cluster, and select the Data sources tab.

Click New. A JSON editor opens with a starting point:

{"metadata": {"name": "lake"}, "spec": {"kind": "S3", "s3": {"bucket": "my-bucket", "auth_type": "instance_profile"}}}

Edit the object (see the examples below) and click Create.
The data source appears in the list with its State. Click a row to see the whole object, including its status.

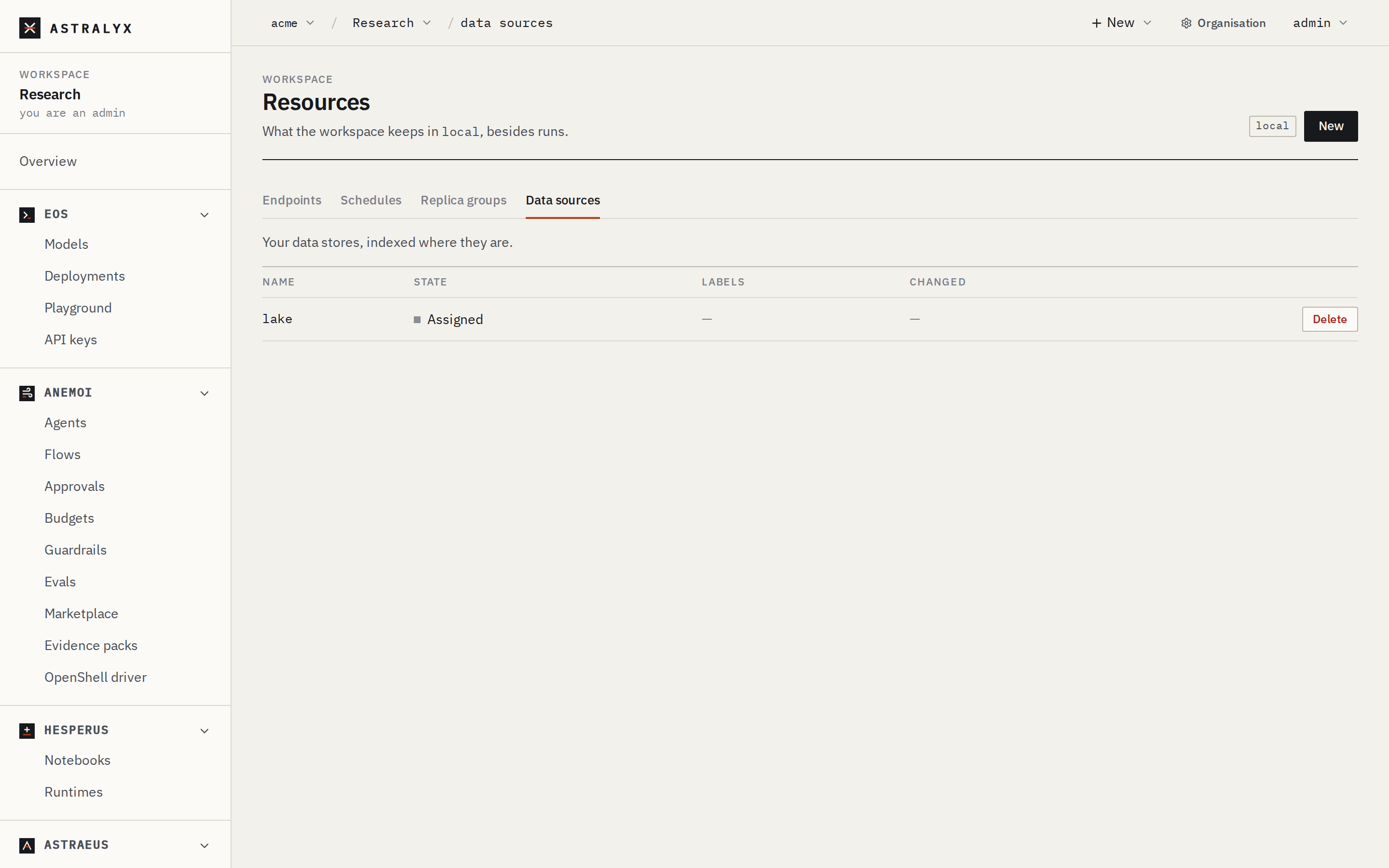

The Data sources tab of Resources

$ curl -sS -X POST "$API/data-sources" \
    -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
    -d '{
      "metadata": {"name": "lake"},
      "spec": {
        "kind": "S3",
        "s3": {"bucket": "acme-training-data", "region": "eu-west-1", "prefix": "imagenet/", "auth_type": "instance_profile"}
      }
    }'

The cluster answers 201 Created. Then follow its state:

$ curl -sS "$API/data-sources/lake" -H "Authorization: Bearer $TOKEN"

The status field moves from Unassigned to Assigned, then Ready or Error, with assigned_node and a reason.

Credential values are refused

A data source never holds a credential. A body with a non-empty field named credentials, secret_access_key, access_key_id, account_key, json_key, private_key, password, token, fingerprint or sasl_password, anywhere in spec, is refused with 400 CREDENTIALS_NOT_ACCEPTED: spec.s3.secret_access_key holds a credential; connectors do not store credentials — create an ExternalSecret that references them in your secret manager and name it in spec.external_secret_ref. Each kind's block also rejects unknown fields.

Examples#

S3 with an access key from a credential

{
  "metadata": {"name": "lake"},
  "spec": {
    "kind": "S3",
    "s3": {"bucket": "acme-training-data", "region": "eu-west-1", "prefix": "imagenet/", "auth_type": "access_key"},
    "external_secret_ref": {"name": "aws-lake-reader"}
  }
}

MinIO

{
  "metadata": {"name": "minio-raw"},
  "spec": {
    "kind": "MinIO",
    "minio": {"endpoint": "https://minio.internal:9000", "bucket": "raw"},
    "external_secret_ref": {"name": "minio-reader"}
  }
}

Google Cloud Storage with the machine's service account

{
  "metadata": {"name": "gcs-eval"},
  "spec": {"kind": "GCS", "gcs": {"bucket": "acme-eval", "prefix": "v3/"}}
}

Azure Blob Storage with the machine's managed identity

{
  "metadata": {"name": "blob-logs"},
  "spec": {"kind": "Azure", "azure": {"account": "acmelogs", "container": "events", "prefix": "2026/"}}
}

An NFS export mounted on the machines, served only by machines labelled site=paris

{
  "metadata": {"name": "nas"},
  "spec": {
    "kind": "NFS",
    "nfs": {"server": "nas01", "export": "/export/data", "host_path": "/mnt/nas01/data"},
    "node_selector": {"site": "paris"}
  }
}

Directories on the machines

{
  "metadata": {"name": "local-datasets"},
  "spec": {
    "kind": "Local",
    "local": {"paths": ["/datasets/shared"], "node_paths": {"gpu-01": ["/mnt/nvme0/datasets"]}}
  }
}

Browse the index#

These routes are answered by the machine that serves the data source. File names and statistics stay on that machine and are sent only in answer to the request.

Route	Query or body	Returns
`GET $API/data-sources/<name>/index`		The stored summary (see below).
`GET $API/data-sources/<name>/files`	`prefix`, `limit` (default 1000, at most 10,000)	Files under a prefix.
`GET $API/data-sources/<name>/partitions`	`prefix`, `limit` (default 1000, at most 10,000)	Partitions (directories) and their values.
`GET $API/data-sources/<name>/profile`	`prefix`	Parquet schema and merged column statistics; the latest value scan joins it.
`GET $API/data-sources/<name>/diff`	`limit` (default 1000, at most 10,000)	What changed in the last pass.
`POST $API/data-sources/<name>/reindex`		Index now instead of waiting for the next pass.
`POST $API/data-sources/<name>/scan`	`{"prefix": "", "max_rows": 200000, "max_bytes": 536870912}`	A bounded value scan of Parquet data, in the background: nulls, min, max, mean and standard deviation, an approximate distinct count (about 1.6 % error), the 10 most frequent values, and a 20-bucket histogram for numbers. Defaults: 200,000 rows and 512 MiB.

$ curl -sS "$API/data-sources/lake/index" -H "Authorization: Bearer $TOKEN"

The summary has these fields:

Field	Description
`node`	The machine that indexed.
`root_hash`	A hash over the partitions. Unchanged means nothing changed.
`indexed_at`, `duration_ms`	When the pass finished, and how long it took.
`files`, `bytes`, `partitions`	Totals.
`schemas`, `parquet_files`, `rows`	Distinct Parquet schemas, Parquet files whose footer was read, and their rows.
`unreadable`	Files whose footer could not be read.
`truncated`	`true` when the pass stopped at the file limit (200,000 by default).
`added`, `removed`, `changed`	Since the previous pass.
`error`	Why the last pass failed. The totals are then the last good ones.

Read the same store from a run#

Runs read stores with their own clients. Give the run a credential and map its keys to the environment variables the client expects:

run.json (excerpt)

{
  "task_template": {
    "image": "amazon/aws-cli:2.17.0",
    "command": "aws",
    "args": ["s3", "sync", "s3://acme-training-data/imagenet/", "/data"],
    "requested_resources": {"cpu_cores": 4, "memory_bytes": 8589934592},
    "secret_refs": [
      {"external_secret_name": "aws-lake-reader",
       "env_vars": {"access_key_id": "AWS_ACCESS_KEY_ID", "secret_access_key": "AWS_SECRET_ACCESS_KEY"}}
    ],
    "datavolume_refs": [{"name": "imagenet-cache", "mount_path": "/data", "mode": "ReadWrite"}]
  }
}

On a machine with an instance role, the run can use that role directly and needs no credential. See Credentials.

Credentials by kind#

With external_secret_ref, the machine that serves the data source reads these keys from the credential. The credential must produce files with exactly these names: store the value as a JSON object with these fields, or map them with data.

`kind`	Without `external_secret_ref`	With `external_secret_ref`
`S3`	`auth_type: instance_profile` (or empty): the machine's EC2 instance role. Region: `region`, else the instance's	`auth_type: access_key`: keys `access_key_id`, `secret_access_key`, optional `session_token`. Region: `region`, else `us-east-1`
`MinIO`	Not possible: a credential is required	Keys `access_key_id`, `secret_access_key`, optional `session_token`. Requests are signed for `us-east-1`
`GCS`	The machine's service account (GCE metadata server)	Key `json_key`: a service-account key
`Azure`	The machine's system-assigned managed identity	Key `account_key`: the storage account key, base64 as Azure gives it
`Oracle`	`auth_type: instance_principal` (or empty): the instance principal	`auth_type: config`: keys `tenancy_ocid`, `user_ocid`, `fingerprint`, `private_key` (PEM). `region` is required
`NFS`, `Local`	Nothing: files are read on the machine	Not used

The credential is fetched only onto the machine that serves the data source, and only while it does. See Credentials for how.

Change or delete a data source#

ConsoleAPI

On Resources → Data sources, click Delete on the row and confirm. There is no edit form: delete and create again, or use the API.

Replace the spec. The body carries the whole new spec:

$ curl -sS -X PUT "$API/data-sources/lake" \
    -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
    -d '{"spec": {"kind": "S3", "s3": {"bucket": "acme-training-data", "prefix": "imagenet-v2/"}}}'

Delete it:

$ curl -sS -X DELETE "$API/data-sources/lake" -H "Authorization: Bearer $TOKEN"

The cluster answers 204 No Content. Deleting a data source never touches the store.

Reference#

Fields#

Field	Type	Default	Description
`metadata.name`	string	required	The data source's name.
`spec.kind`	string	required	`S3`, `MinIO`, `GCS`, `Azure`, `Oracle`, `NFS`, `Local`, `Kafka`, `SQS` or `EventBridge`. The matching block must be set.
`spec.external_secret_ref.name`	string	none	The credential to read keys from.
`spec.node_selector`	map	none	Labels a machine must carry to serve the data source, in addition to the workspace's pools.
`spec.format`	string	none	`parquet`, `json`, `avro`, `proto` or `raw`. Stored; the catalog recognises Parquet files by their `.parquet` extension.
`spec.index_interval_seconds`	integer	`0`	Stored. The re-index period is set on the machine (5 minutes by default).
`spec.auto_profile`	boolean	`false`	Stored. Value scans run only when you ask for one.

Per-kind blocks#

Block	Field	Required	Description
`s3`	`bucket`	yes	Bucket.
	`region`	no	Region.
	`prefix`	no	Key prefix.
	`auth_type`	no	`instance_profile` (default) or `access_key` (needs `external_secret_ref`).
`minio`	`endpoint`	yes	Endpoint URL, for example `https://minio.internal:9000`.
	`bucket`	yes	Bucket.
	`prefix`	no	Key prefix.
`gcs`	`bucket`	yes	Bucket.
	`prefix`	no	Name prefix.
`azure`	`account`	yes	Storage account.
	`container`	yes	Container.
	`prefix`	no	Name prefix.
`oracle`	`namespace`	yes	Object Storage namespace.
	`bucket`	yes	Bucket.
	`prefix`	no	Name prefix.
	`region`	with `config`	Region.
	`auth_type`	no	`instance_principal` (default) or `config` (needs `external_secret_ref`).
`nfs`	`host_path`	yes, to be indexed	Where the export is already mounted on the machines. The catalog does not mount NFS itself.
	`server`, `export`, `path`	`server` and `export` without `host_path`	Accepted for reference.
`local`	`paths`	at least one path overall	Absolute directories on every machine.
	`node_paths`		Additional directories per machine: `{"gpu-01": ["/mnt/nvme0/datasets"]}`.
`kafka`	`brokers`, `topic`, `group_id`	yes	Stored only. `start_offset`, `sasl_mechanism` (needs `external_secret_ref`), `tls_enabled`.
`sqs`	`queue_url`	yes	Stored only. `region`, `visibility_timeout_seconds`, `max_number_of_messages`, `wait_time_seconds`, `fifo`.
`event_bridge`	`event_bus_name`, `rule_name`	yes	Stored only. `endpoint_host`, `labels`.

States#

State	Meaning
`Unassigned`	No `Up` machine of the workspace's pools matches `node_selector`.
`Assigned`	A machine serves it; its first check is pending.
`Ready`	The machine reached the store.
`Error`	The machine could not reach the store; `reason` has the store's answer.

Limits#

Limit	Default
Index pass and reachability check	every 5 minutes
Files per pass	200,000 (the summary says `truncated`)
Value scan	200,000 rows, 512 MiB
`limit` on file, partition and diff listings	1000 by default, 10,000 at most

Troubleshooting#

Symptom	Cause	Fix
Stays `Unassigned`	No `Up` machine in the workspace's pools matches `node_selector`, or none runs the agent's data part.	Check the selector and the pools; install the machine with `--agents` including `data` (the default).
`Error`: `secret aws-lake-reader has no key access_key_id on this node (is it synced?)`	The credential has not been fetched onto the machine yet, or it lacks that key.	Check the credential's state; add the key or map it with `data`.
`Error`: `NFS connectors are served from spec.nfs.host_path; mounting is not done by the catalog`	`host_path` is empty.	Mount the export on the machines and set `host_path`.
`Error`: `Kafka connectors are streams, … the catalog indexes stored data`	Streams are not indexed.	Expected.
`Error`: `authentication failed: the instance has no IAM role attached`	`instance_profile` on a machine without an instance role.	Attach a role, or use `access_key` with a credential.
