GPUs#

This page explains how a machine's GPUs become schedulable: what the driver must provide, how the machine agent finds and reports each GPU, how a worker receives exactly its GPUs, and how faults take a GPU out of service. Read it when you prepare GPU machines, or when a GPU is missing, faulty or "used outside Astraeus".

What the machine must have#

Vendor On the host Not needed
NVIDIA The NVIDIA kernel driver, loaded (/proc/driver/nvidia exists, nvidia-smi -L answers). 535 or newer recommended; CUDA 12 images need 525.60.13 or newer. CUDA on the host, the NVIDIA container runtime. The release bundles nvidia-ctk and nvidia-cdi-hook.
AMD The kernel's amdgpu driver bound to the GPU, /dev/kfd, and the GPU firmware. ROCm on the host, AMD's container toolkit. Images bring ROCm.

A GPU without a working driver does not stop the machine from joining. It runs CPU work, and the agent picks the GPU up by itself once the driver loads; a reboot may be needed.

Install the driver#

The installer installs a driver only where the distribution has an official way, and asks before it adds a package repository. Without a terminal (cloud-init, Ansible), pass --install-nvidia-driver or --install-amd-driver to allow it. Pass --no-nvidia-driver or --no-amd-driver to never install one.

Distribution What the installer does Asks first
Ubuntu Installs ubuntu-drivers-common if missing, then ubuntu-drivers install (the driver Ubuntu recommends for the GPU). No: Ubuntu's own repositories.
Debian Adds contrib non-free (and non-free-firmware from Debian 12) in /etc/apt/sources.list.d/astraeus-nvidia.list when nvidia-driver is not available, then installs linux-headers-$(uname -r) nvidia-driver firmware-misc-nonfree. Yes, when it adds the repository.
Fedora Adds RPM Fusion free and nonfree, then installs akmod-nvidia xorg-x11-drv-nvidia-cuda. The module builds in the background. Yes, when it adds RPM Fusion.
RHEL, Rocky Linux, AlmaLinux, CentOS Adds EPEL and NVIDIA's CUDA repository for the major version, installs kernel headers, then dnf module install nvidia-driver:latest-dkms (or cuda-drivers). Yes, when it adds the repositories.
Others Nothing. It prints what to install. —

With Secure Boot on, the module must be signed; the distribution's packages may ask you to enrol a key at the next boot. After installing, the installer loads the module or tells you to reboot:

· this machine has an NVIDIA GPU but no NVIDIA driver
· installing the NVIDIA driver Ubuntu recommends for this GPU (ubuntu-drivers)
· the NVIDIA driver is installed; reboot this machine to load it — the worker picks the GPUs up after the reboot (until then, CPU work)
  1. If amdgpu does not drive every AMD GPU, the installer loads it (modprobe amdgpu).
  2. On Ubuntu it installs the packages that carry amdgpu on server and cloud kernels, and the firmware: linux-modules-extra-$(uname -r) and linux-firmware, from Ubuntu's repositories, without asking. On Fedora and the RHEL family it installs linux-firmware.
  3. If the GPU is still not driven, or /dev/kfd is missing, it offers AMD's packaged driver (amdgpu-dkms from repo.radeon.com, release 31.50 by default, set with ASTRAEUS_AMDGPU_VERSION) — only on Ubuntu 22.04 and 24.04 on x86-64, only after you agree or with --install-amd-driver. A reboot loads it.

Elsewhere, install a kernel new enough for the GPU (Radeon RX 7000 and Radeon PRO W7000: 6.2 or newer; Instinct MI300: 6.8 or newer) with the firmware, or AMD's packaged driver. The machine agent runs as root, so no user needs to be added to the video or render groups.

How GPUs are found#

The machine agent (astraeus-agent) reads the GPUs at start and on every report:

  • NVIDIA through NVML, loaded at run time from libnvidia-ml.so.1, or nvidia-smi where NVML cannot be loaded. NVML runs on a thread of its own: a GPU that hangs an NVML call is reported as unresponsive, and nothing else on the machine waits for it.
  • AMD from the files the amdgpu driver publishes in sysfs, where amd-smi and rocm-smi read them too. No ROCm library is loaded.
  • The PCI bus, whatever the driver. A GPU the driver does not report (no driver, nouveau, or passed to a VM through vfio-pci) is still listed, under GPUs on the bus, with what is missing.
  • Apple silicon on a Mac: one GPU of vendor apple; see macOS.

For each GPU the machine reports:

Field NVIDIA AMD
Id UUID (GPU-…) unique_id (AMD-…), else the PCI address
Model NVML name (NVIDIA H100 80GB HBM3) Board name, else derived from device id and memory (AMD Radeon RX 7900 XTX), else the PCI database
Memory, memory used NVML mem_info_vram_total, mem_info_vram_used
Architecture From the compute capability (hopper) From the KFD topology (gfx1100, gfx942)
Utilisation, temperature, power, clocks, fan NVML The GPU's hwmon
Errors ECC (volatile and aggregate), retired pages, row remapping, NVLink link state and errors, PCIe replays, Xid events RAS uncorrectable counts, bad VRAM pages, driver resets
Driver Driver version amdgpu module version, or the kernel release; ROCm version when /opt/rocm exists

The machine also reports a summary of what it is (its capabilities): GPU vendor, model, architecture, count and driver, whether the GPUs are data-centre boards, and whether it has NVLink, an NVSwitch fabric, IMEX channels and RDMA.

How a worker gets its GPUs#

The scheduler assigns concrete GPUs to each worker. The machine agent then hands those GPUs, and only those, to the container.

With the bundled containerd, GPUs are handed over through the Container Device Interface (CDI):

  1. When the NVIDIA driver is loaded and sees GPUs, the agent runs the bundled nvidia-ctk to write /var/run/cdi/nvidia.yaml. It records a fingerprint (driver version and GPU set) in /var/run/cdi/.nvidia.yaml.astraeus-fingerprint and writes the spec again when either changes. A spec it did not write is replaced the first time; a spec it wrote is removed when the GPUs or the driver go away.
  2. For each worker it requests nvidia.com/gpu=<UUID> for each assigned GPU and applies the spec's device nodes, library mounts and hooks.
  3. Specs are read from /etc/cdi and /var/run/cdi; /var/run/cdi wins. Two files in the same directory defining the same device is a conflict: that device is refused rather than picked at random.

With --runtime docker, GPUs are requested from Docker by id through the NVIDIA runtime (Docker needs the NVIDIA Container Toolkit).

The agent writes its own CDI spec, /var/run/cdi/amd-astraeus.json (kind amd.com/gpu), from sysfs, before a GPU container starts and on its periodic pass. For each GPU it lists:

  • the GPU's render node (/dev/dri/renderD<N>) and card, matched to the GPU by PCI address, not by card number;
  • /dev/kfd, shared by all;
  • the host groups owning them (render, video), added as the container's supplementary groups, so a non-root image can open them.

Under the default seccomp profile, a worker with AMD GPUs may also call the NUMA memory-policy system calls ROCm uses (mbind, set_mempolicy, get_mempolicy, set_mempolicy_home_node), instead of running unconfined. With --runtime docker the same devices and groups are passed to Docker.

Inside the worker#

A worker sees only its own GPUs, numbered from 0. Astraeus does not set CUDA_VISIBLE_DEVICES, HIP_VISIBLE_DEVICES or ROCR_VISIBLE_DEVICES: the container has only its GPUs' device nodes, so host indices would point past them.

$ nvidia-smi -L
GPU 0: NVIDIA H100 80GB HBM3 (UUID: GPU-5f1e2d3c-4b5a-6978-8a9b-0c1d2e3f4a5b)
GPU 1: NVIDIA H100 80GB HBM3 (UUID: GPU-8c9a3a0e-7d2b-4a47-9c1b-3f0c7a1e5d01)

When a worker has GPUs, it also gets these variables, unless the run sets them itself:

Variable Value
ASTRAEUS_GPU_COUNT Number of GPUs assigned to this worker.
SLURM_GPUS_ON_NODE, SLURM_GPUS_PER_TASK The same number, for Slurm-style scripts.
NCCL_DEBUG WARN
NCCL_ASYNC_ERROR_HANDLING 1
NCCL_SOCKET_IFNAME ^lo,docker,virbr,veth,cni,wg
NCCL_IB_HCA The RDMA ports that are up and fast enough, when the run uses RDMA.
NCCL_IB_DISABLE 1 when a multi-machine run was placed over Ethernet, so NCCL does not try InfiniBand that cannot reach the other machines.

The full environment is in Inside a worker.

  • Inside a machine, NVLink and NVSwitch are reported per GPU: link count, links down, errors. The console's GPU page shows each link.
  • Across machines (for example GB200 NVL72), each GPU reports the NVLink fabric it registered with. The machine's NVLink domain is the fabric's cluster UUID and clique id. The scheduler treats machines in the same domain as one tier of the network, tighter than InfiniBand, and a worker placed in a domain gets IMEX channel 0. See Pools, labels and topology.

Health#

What fences a GPU#

A GPU with a fault is never assigned. The rule is the same for the scheduler and the console:

Fault Reported as
A fatal Xid: 48, 63, 74, 79, 92, 95, 119, 120, 149 or 154 (or another Xid the driver confirmed as a fault) Xid <n> fault
An AMD GPU whose reset failed driver fault: <kernel message>
Row remapping failed row-remap failure — GPU needs RMA
Uncorrectable rows remapped <n> uncorrectable row(s) remapped
Uncorrectable ECC errors since the driver loaded <n> active uncorrectable ECC error(s)
Every NVLink link inactive all <n> NVLink link(s) inactive
NVLink fabric route unhealthy, or fabric registration failed NVLink fabric route unhealthy, fabric registration failed (status <n>)

Xid events are read from the kernel log (/dev/kmsg, lines NVRM: Xid (PCI:…)); AMD resets and ring timeouts from the same log. A fault is latched: it is kept in the agent's state file, survives agent restarts and reboots, and stays until an admin clears it — or until the GPU is replaced (its UUID changes).

Historical scars that were repaired (aggregate ECC counts, retired pages, a pending remap, some NVLink links down) do not fence a GPU.

At risk#

A GPU that still works but shows what usually precedes a fault is at risk. Over the last 24 hours:

Sign Threshold
Correctable memory errors More than 50
PCIe replays More than 100
NVLink errors More than 10
Slowed down by heat More than 10 minutes
Temperature 87 °C or more
A memory row waiting to be remapped Any

New work avoids GPUs at risk while healthy ones are free. A run that sets gpu_requests.healthy_only never gets one; it waits for healthy GPUs instead.

Used outside Astraeus#

A GPU with more than 10 % of its memory in use while Astraeus has not assigned it is taken to be in use by something else on the machine (a desktop session, a process started by hand). It is not assigned until that memory is freed.

The machine's GPU conditions#

Condition Reason Meaning
GPU subsystem ready DriverResponding The driver answers.
DriverUnresponsive An NVML call hangs.
DriverUnavailable The driver does not answer.
DriverNotInstalled A GPU on the bus has no driver.
WrongDriver A GPU is held by nouveau.
GPUPassedThrough A GPU is bound to vfio-pci.
GPUs healthy AllGPUsHealthy / GPUFault Whether any GPU is fenced, and why.

The GPUs page#

Compute → GPUs in a workspace shows every GPU the workspace can see: which are free, which need attention, and who holds the rest. Each square is one GPU, coloured by health first, then by whose work holds it; a striped square is held by work but nearly idle (below 5 % busy).

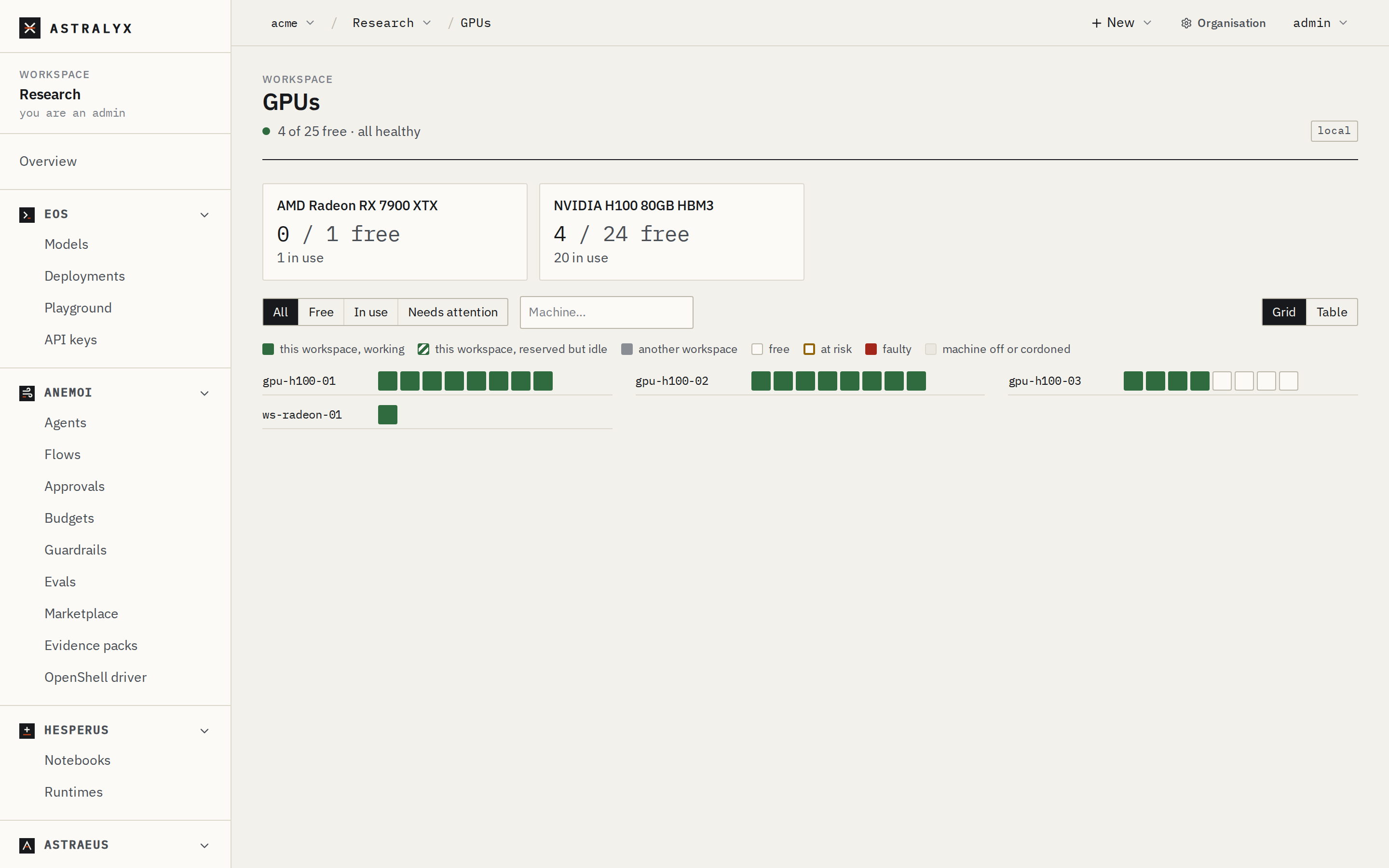

The GPUs page: GPUs by machine, coloured by health and holder

Health Meaning
Healthy Usable.
Faulty Fenced: never assigned until the fault is cleared.
At risk Usable, avoided by new work while healthy GPUs are free.
Used outside Astraeus Memory in use by something Astraeus did not start.

Open a GPU to see its errors, links, utilisation, memory, power, temperature and clocks over time.

Clear a GPU fault#

Clear a fault only after the GPU was reset or replaced. If the fault comes back, the GPU is fenced again.

  1. Open Compute → GPUs and click the faulty GPU.
  2. Click Clear fault (organisation admins only) and confirm.

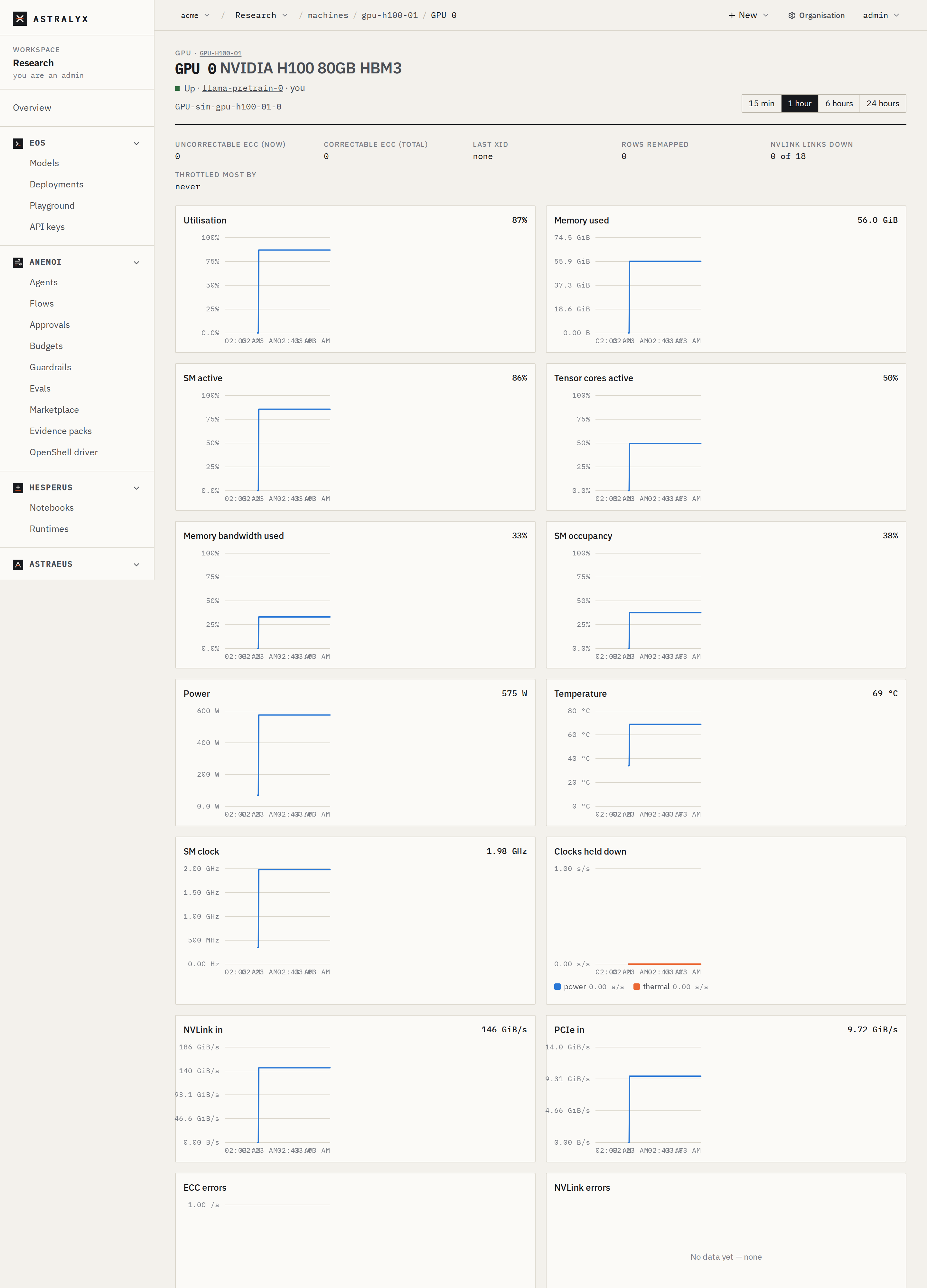

A GPU's page: model, utilisation, memory, health and the worker that holds it

astra has no command for this. Use the console or the API.

$ curl -sS -X POST \
    "https://console.astralyx.cloud/api/v1/orgs/acme/clusters/fra-1/nodes/gpu-01/gpus/GPU-5f1e2d3c-4b5a-6978-8a9b-0c1d2e3f4a5b/clear-fault" \
    -H "Authorization: Bearer $ASTRAEUS_TOKEN"
{"uuid":"GPU-5f1e2d3c-4b5a-6978-8a9b-0c1d2e3f4a5b","cleared":true}

The machine must be connected: the request is delivered to it, and cleared is false when it had no fault latched for that GPU.

Limits#

  • MIG partitions are not scheduled: a GPU is given whole to one worker.
  • GPU counts are whole numbers; GPUs are not shared between workers.
  • A sandboxed worker (isolation: sandbox, gVisor) cannot have GPUs.
