Single sign-on and sign-in#

With single sign-on (SSO), people sign in to Astralyx through your company's identity provider and join your organisation at their first sign-in, with the role you choose. This page shows how to set it up, what is checked at every sign-in, and how it relates to the other ways to sign in: Google, GitHub, and passwords. SSO is organisation-wide: it gives access to every product, in the workspaces each person is added to.

How SSO works#

Each organisation can connect one identity provider over OpenID Connect (the authorization code flow, with PKCE). SAML is not supported.

sequenceDiagram
  actor U as Person
  participant A as Astralyx console
  participant I as Your identity provider
  U->>A: /sso, enters the organisation's short name
  A->>I: redirect (state, nonce, PKCE challenge)
  U->>I: signs in
  I->>A: back with a code
  A->>I: exchanges the code (client secret)
  A->>A: verifies the ID token, the e-mail, the allowed domains
  A->>U: signed in; a member of the organisation

People start from the console's sign-in page with Sign in with your organisation's identity provider (the /sso page), enter your organisation's short name, and continue at your provider.

Requirements for the identity provider#

Any provider that implements OpenID Connect discovery works if:

it publishes <issuer>/.well-known/openid-configuration, and the issuer in that document equals the issuer you configure (a trailing / is ignored);
its ID tokens are signed with RS256 and carry email and email_verified: true (a boolean, or the string "true"). An ID token without a verified e-mail is refused: check that your provider releases these claims to the client;
its token endpoint accepts the client secret with HTTP Basic authentication (client_secret_basic);
its discovery, token and key (JWKS) endpoints are on public addresses: Astralyx never connects to private or internal addresses that customers give it.

Astralyx asks for the scopes openid email profile.

Before you begin#

You are an owner or admin of the organisation.
You can create an application — a web, or confidential, client — at your identity provider.
Decide which e-mail domains may sign in, and the role new people get (member is the safe default).

Set up SSO#

In the console, open Organisation → Single sign-on. Copy the Redirect URI shown at the side. On Astralyx it is https://console.astralyx.cloud/api/v1/auth/sso/callback.
At your identity provider, create a confidential client (a "web application") for the authorization code flow, and register that redirect URI. Note its issuer URL, client ID and client secret.

Back in the console, fill in the form:

Field	Description
Issuer	The provider's issuer URL (`https://…`). Its discovery document is fetched when you save; if that fails, saving fails with `400 DISCOVERY_FAILED`.
Client ID	The client ID at the provider.
Client secret	Stored encrypted, never shown again. Required the first time; later, leave it empty to keep the stored one.
Allowed e-mail domains	Comma-separated, for example `acme.ai, lab.acme.ai`. A person whose e-mail is in none of them is refused (`403 DOMAIN_NOT_ALLOWED`). Empty accepts any address the provider has verified.
Role for new members	`member` (default) or `admin`. Applies only to people who are not members yet.

Select Turn on (Save when changing existing settings). The page says Saved.
Test it: in a private browser window, open https://console.astralyx.cloud/sso, enter the organisation's short name and sign in at the provider. You return to the console, signed in, with the organisation in the organisation menu.
Tell people the sign-in address and the short name to type, both shown at the side of the page under Sign-in address.

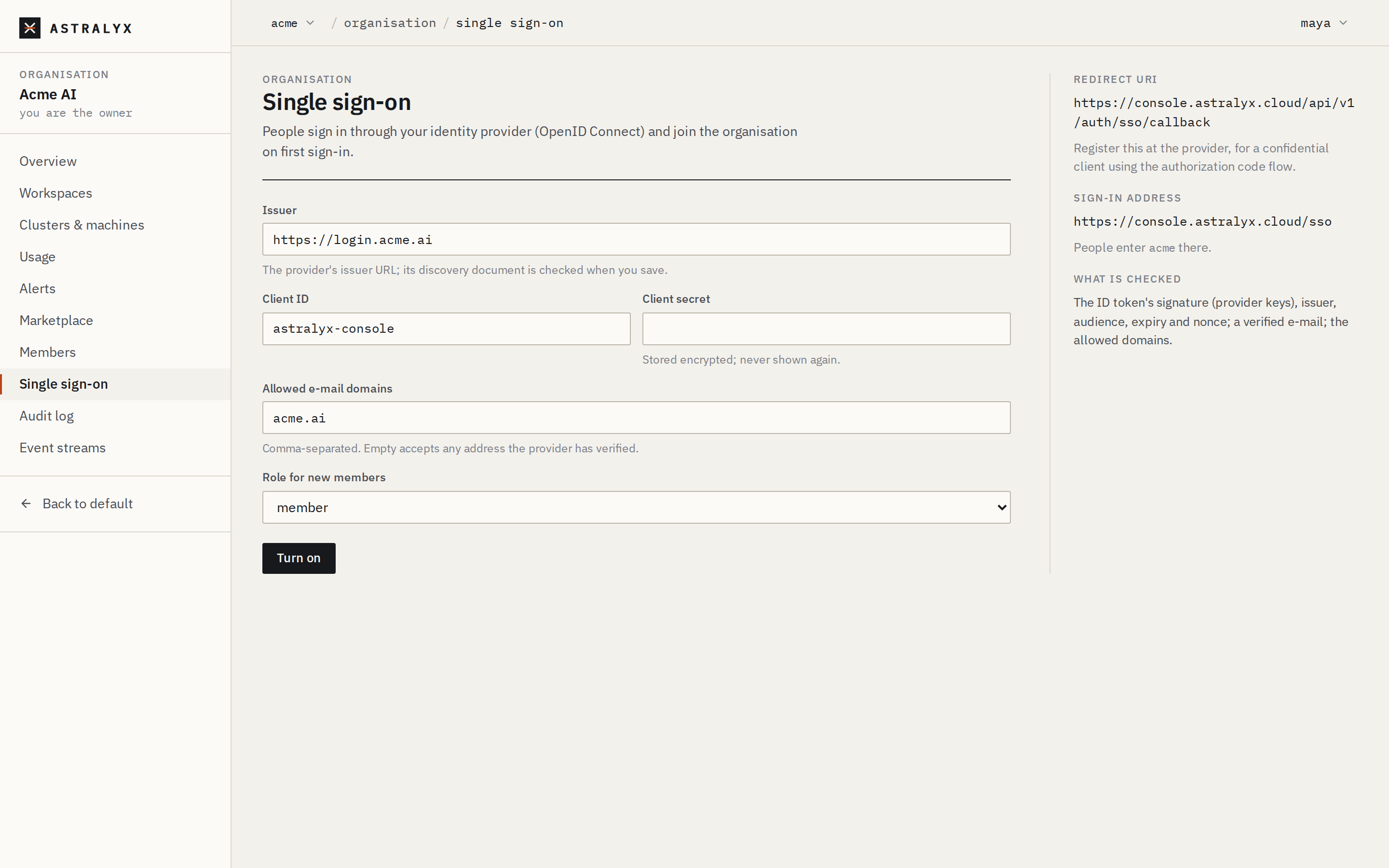

Single sign-on settings with an issuer, a client ID and an allowed domain, and the redirect URI at the side

The same through the API:

$ curl -sS -X PUT "$ASTRA_URL/api/v1/orgs/acme/sso" \
    -H "Authorization: Bearer $ASTRA_TOKEN" -H "Content-Type: application/json" \
    -d '{"issuer": "https://login.acme.ai", "client_id": "astralyx",
         "client_secret": "…", "allowed_domains": ["acme.ai"], "default_role": "member"}'
{"issuer":"https://login.acme.ai","client_id":"astralyx","allowed_domains":["acme.ai"],"default_role":"member","redirect_uri":"https://console.astralyx.cloud/api/v1/auth/sso/callback"}

Field	Type	Default	Description
`issuer`	string	—	`http(s)://…`; `400 INVALID_ISSUER` otherwise.
`client_id`	string	—	The client ID.
`client_secret`	string	the stored one	Required the first time.
`allowed_domains`	list of strings	`[]` (any verified address)	E-mail domains allowed to sign in.
`default_role`	string	`member`	`member` or `admin` (`400 INVALID_ROLE` otherwise).

GET /orgs/{org}/sso returns the settings without the secret (404 SSO_NOT_CONFIGURED when there are none). A browser can start a sign-in directly at GET /api/v1/auth/sso/{org}/start?redirect_to=/<path>, for example from a link on your intranet.

Where to find the issuer#

The issuer is the URL your provider's discovery document names. Common forms:

Provider	Issuer
Okta	`https://<your-okta-domain>` or `https://<your-okta-domain>/oauth2/<authorization server>`
Keycloak	`https://<host>/realms/<realm>`
Google	`https://accounts.google.com`
Microsoft Entra ID	`https://login.microsoftonline.com/<tenant ID>/v2.0`

Open <issuer>/.well-known/openid-configuration in a browser: if it loads and its issuer is the same string, the issuer is right. Whatever the provider, the ID token must carry email_verified: true; if sign-in fails with the provider has not verified this e-mail, configure the provider to release that claim to the client.

Astralyx sends the browser to the provider with a new state, nonce and PKCE challenge (S256). The sign-in must finish within 10 minutes, and each state is used once.
On return, Astralyx exchanges the code and verifies the ID token: its signature against the provider's published keys, the issuer, the audience (your client ID; with several audiences, azp must be your client ID), expiry and issue time with 60 s of clock skew, the nonce, a verified e-mail, and the allowed domains.
It uses the Astralyx account with that e-mail, or creates one. If an existing account with that e-mail was never verified, the provider's assertion takes it over: its password, sessions and API tokens are removed, so whoever registered the address without proving it keeps no way in. A disabled account is refused.
It adds the person to the organisation with the Role for new members, unless they are a member already (their role is left as it is).
It starts a browser session and records user.sso_login in the audit log.

People who first sign in through SSO get no personal organisation: they start in yours.

People who leave#

SSO adds members; it never removes them.

Warning

Disabling someone at your identity provider stops their new SSO sign-ins. A browser session already open lasts until it expires (12 hours), a CLI session up to 30 days, and their personal API tokens keep working. Also remove them from the organisation (Members and invitations): that ends their access to it at their next request.

The order matters: disable them at the provider first, then remove them. Removed but still enabled at the provider, their next SSO sign-in makes them a member again, with the role for new members.

Turn SSO off#

In Organisation → Single sign-on, select Turn off single sign-on and confirm (or DELETE /orgs/{org}/sso). People who joined through SSO keep their accounts and memberships. Accounts created by SSO have no password: they set one with Forgot the password? on the sign-in page before they can sign in again. The change is recorded as sso.remove.

Besides your SSO, people can sign in with a password, or with Google or GitHub when Astralyx offers them on the sign-in page (GET /api/v1/auth/providers lists the providers offered). Google and GitHub are Astralyx's sign-in options, not your organisation's:

Google is verified like SSO: an OpenID Connect ID token with a verified e-mail.
GitHub uses the account's primary, verified e-mail; an unverified one is never trusted.

A Google or GitHub sign-in uses the account linked to that provider before, else the account with the same e-mail (taking over an unverified one, as SSO does), else a new account when sign-up is open. It never makes anyone a member of an organisation: they still need an invitation, or your SSO.

Note

Turning on SSO does not stop your members from signing in with a password, Google or GitHub: their account is the same whichever way they sign in. What SSO controls is who joins. To cut someone off, remove them from the organisation.

Accounts and sessions#

Item	Value
Password	At least 12 characters, at most 1024 bytes
E-mail verification link	Valid 24 hours, single use
Password reset link	Valid 1 hour, single use; using it ends every session of the account
Browser session	12 hours: an `HttpOnly`, `SameSite=Lax` cookie
CLI session (`astra login`)	30 days
Changing your password (Account & tokens → Password)	Ends every other session of the account
Signing out	Ends the current session

There is no list of a person's sessions to end them one by one. To end all of them, change or reset the password.

When sign-up is limited to invitations, signing up without one fails with 403 SIGNUP_CLOSED. Sign-in attempts are rate-limited; see Limits.

Troubleshooting#

Symptom	Cause	Fix
`400 DISCOVERY_FAILED` when saving	The discovery document is unreachable, or names another issuer.	Use the issuer exactly as `<issuer>/.well-known/openid-configuration` names it; it must be on a public address.
`403 DOMAIN_NOT_ALLOWED` at sign-in	The e-mail's domain is not in Allowed e-mail domains.	Add the domain, or empty the list.
`401 SSO_FAILED`: the provider has not verified this e-mail	The ID token lacks `email_verified: true`.	Configure the provider to release a verified `email` claim to this client.
`401 SSO_FAILED`: the sign-in took too long	More than 10 minutes passed at the provider.	Start again from `/sso`.
`404 SSO_NOT_CONFIGURED` at `/sso`	The short name is wrong, or SSO is off.	Check the short name in the organisation's addresses (`/o/<short name>`).
The provider says the redirect URI is not allowed	It was not registered, or differs by a character.	Register `https://console.astralyx.cloud/api/v1/auth/sso/callback` exactly.
`403 WRONG_ACCOUNT` accepting an invitation	Signed in with another e-mail.	Sign in, or sign up, with the invited address.
`429 TOO_MANY_ATTEMPTS`	Too many sign-in attempts.	Wait for the window to pass (15 minutes for sign-in).
