Serve an open chat model on one GPU machine#

You serve Llama 3.1 8B Instruct on one machine with one 24 GB GPU (an RTX 4090, an RTX A5000, an L4 with 24 GB, a Radeon RX 7900 XTX), with a 32K context, for a handful of people at once. You check that it fits, deploy it, try it, call it, and then try the same model on vLLM.

What you need:

A workspace with a cluster and that machine, with a data location chosen (Machines → the machine → Data location → Confirm). 5 GB of free space there.
The editor role, an API token and the variables in How the recipes are written.
A gateway: a machine running the agent's edge part, or the hosted gateway (Gateways).

1. Check that it fits#

ConsoleCLIAPI

Open Eos → Models → Library, search llama 3.1 and open Llama 3.1.
Under Runs on, pick your machine. The 8B row shows each variant: Q4_K_M is 4.9 GB to download and needs 9.8 GB memory at 8,192 tokens and 4 requests at once — fits on a GPU.
Click the cell. The panel lists your machine as 1× … ✓.

$ astra inference show llama3.1 --machine gpu-01

$ curl -fsS "$CONSOLE/library/llama3.1?machines=gpu-01" -H "Authorization: Bearer $ASTRAEUS_TOKEN" \
    | jq -r '.family.models[] | .variants[] | "\(.ref)  \(.fit.status)  \(.fit.machines[0].text)"'
llama3.1:8b-q4_k_m  gpu  1× RTX 4090 ✓
…

The memory is the weights (4.9 GB), the KV cache for 4 requests of 8,192 tokens (4.3 GB: 128 KiB per token for this model) and overhead. A 32K context for 4 requests at once would need 17 GB of cache — more than the GPU holds with the weights — so this recipe serves 2 requests at once at 32K: 4.9 + 8.6 + 0.5 ≈ 14 GB, within the 21.6 GB usable on a 24 GB GPU.

2. Deploy it#

ConsoleCLIAPI

In the variant's panel, press Deploy. New deployment opens with llama3.1:8b-q4_k_m, added on the way.
Name: chat. Runs on: GPUs. GPUs per replica: Automatic.
Clear Scale to zero when idle; Replicas, at least 1, at most 1.
Context length: 32768.
Open Advanced: Requests at once, per replica 2; Engine arguments: --flash-attn on.
What it will take says 1 GPU ≥ … GB and which machine can take it. Press Deploy.

astra inference deploy has no flag for parallel requests or engine arguments; this deploys with the default of 4 at once and an 8K context:

$ astra inference add llama3.1:8b
$ astra inference deploy llama3-1-8b-q4-k-m --name chat

$ curl -fsS -X POST "$CONSOLE/clusters/main/models" -H "Authorization: Bearer $ASTRAEUS_TOKEN" \
    -H 'content-type: application/json' -d '{"catalog": "llama3.1:8b-q4_k_m"}' | jq -r .metadata.name
llama3-1-8b-q4-k-m

chat.json

{
  "metadata": {"name": "chat"},
  "spec": {
    "model": "llama3-1-8b-q4-k-m",
    "replicas": {"min": 1, "max": 1},
    "gpus": 1,
    "context_length": 32768,
    "parallel": 2,
    "engine_args": ["--flash-attn", "on"]
  }
}

$ curl -fsS -X POST "$API/deployments" -H "Authorization: Bearer $ASTRAEUS_TOKEN" \
    -H 'content-type: application/json' -d @chat.json > /dev/null

The replica downloads the weights (the fill run's log shows the progress every ten seconds), then llama.cpp loads them. The deployment becomes Ready with 1 replica serving.

3. Try it#

On the deployment's page, the Each replica fact shows what it holds (1 GPU ≥ … GB) and Context 32,768 tokens · 2 at once.
Press Try in the Playground. Ask something long — paste a document and ask for a summary. The answer is written as it comes, in markdown, with its tokens per second under it.

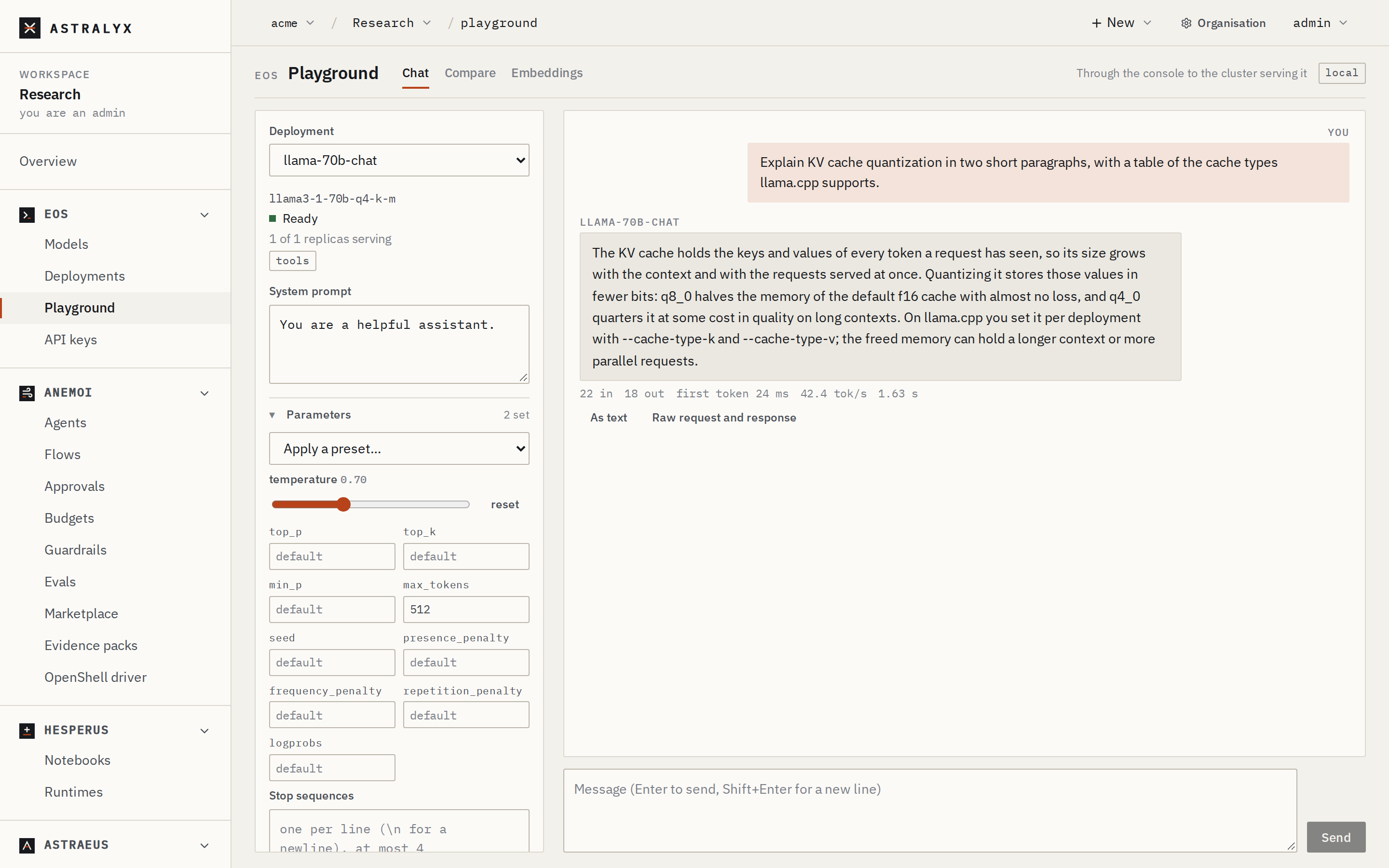

The Playground on a deployment

4. Call it#

Make a key for it (Eos → API keys → New key, Only these: chat), then:

$ curl -sS $EOS_URL/chat/completions \
    -H "Authorization: Bearer $ASTRAEUS_API_KEY" -H "Content-Type: application/json" \
    -d '{"model": "chat", "temperature": 0.2,
         "messages": [{"role": "system", "content": "You answer in one sentence."},
                      {"role": "user", "content": "What is tensor parallelism?"}]}' \
    | jq '{answer: .choices[0].message.content, usage}'

ask.py

import os
from openai import OpenAI

client = OpenAI(base_url=os.environ["EOS_URL"], api_key=os.environ["ASTRAEUS_API_KEY"])
for chunk in client.chat.completions.create(
    model="chat",
    messages=[{"role": "user", "content": "Give three uses of a 32K context."}],
    stream=True,
):
    if chunk.choices:
        print(chunk.choices[0].delta.content or "", end="", flush=True)
print()

5. Check that it worked#

GET $EOS_URL/models with the key lists chat.
Organisation → Usage → Tokens by model shows llama3-1-8b-q4-k-m with your requests and tokens.
The replica's Log (on the deployment's page, under Replicas) shows llama.cpp's own lines for each request.

Variation: the same model on vLLM#

vLLM serves the full checkpoint and batches many requests at once. Llama 3.1's checkpoint is gated: accept Meta's terms on Hugging Face, add a credential with your token under token (Credentials), and choose it when you add the model.

$ curl -fsS -X POST "$CONSOLE/clusters/main/models" -H "Authorization: Bearer $ASTRAEUS_TOKEN" \
    -H 'content-type: application/json' -d '{"catalog": "llama3.1:8b-bf16", "credential": "hf-token"}'
$ curl -fsS -X POST "$API/deployments" -H "Authorization: Bearer $ASTRAEUS_TOKEN" \
    -H 'content-type: application/json' \
    -d '{"metadata": {"name": "chat-vllm"}, "spec": {"model": "llama3-1-8b-bf16", "context_length": 16384}}'

The bf16 checkpoint is 16.1 GB and the library judges it at 18.7 GB: it fits a 24 GB GPU, with less room for the cache than the quantized model leaves. vLLM's default is 256 sequences at once, which it pages through the cache it has.

Clean up#

On the deployment's page press Delete (or curl -X DELETE "$API/deployments/chat" …). To free the disk too, delete the model in Models → In this workspace: its weights are deleted on every machine.

Troubleshooting#

Symptom	Cause	Fix
`Pending`: Waiting for a machine with a GPU with at least 16 GB	The GPU is in use, or smaller than the plan asks.	Why? names what holds it. Lower `context_length` or `parallel`.
The replica keeps exiting, its log ends in an out-of-memory error	The context and parallel requests do not fit next to something else on the GPU.	Lower `parallel` to 1 or the context to 16384.
`400 INVALID_DEPLOYMENT`: spec.context_length 200000: model … takes at most 131072 tokens	More than the model's context.	Use at most 131072.
